Chi tiết sản phẩm
Nguồn gốc: Trịnh Châu, Trung Quốc
Hàng hiệu: Shenghong
Chứng nhận: BV, SGS, ISO
Số mô hình: SH1.8×7
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 1 bộ
Giá bán: có thể đàm phán
chi tiết đóng gói: Nhu cầu của khách hàng, thường là trong container
Thời gian giao hàng: 10-12 ngày làm việc
Điều khoản thanh toán: L/C, T/T, D/A, Liên minh phương Tây
Khả năng cung cấp: 80 bộ mỗi tháng
Nguyên liệu của máy: |
Thép cacbon |
Dịch vụ hậu mãi: |
Kỹ sư sẵn sàng ở nước ngoài |
Kích thước: |
8,3 * 3,5 * 3,3 m |
Dung tích: |
8-15 tấn/giờ |
Tốc độ: |
11,5 vòng/phút |
Điện áp: |
380V, 50HZ, tùy chỉnh |
Tình trạng: |
Mới |
Cài đặt: |
Hướng dẫn kỹ sư |
Nguyên liệu của máy: |
Thép cacbon |
Dịch vụ hậu mãi: |
Kỹ sư sẵn sàng ở nước ngoài |
Kích thước: |
8,3 * 3,5 * 3,3 m |
Dung tích: |
8-15 tấn/giờ |
Tốc độ: |
11,5 vòng/phút |
Điện áp: |
380V, 50HZ, tùy chỉnh |
Tình trạng: |
Mới |
Cài đặt: |
Hướng dẫn kỹ sư |
Drum Granulator Granulator Machine Drum Granulator Npk Fertilizer Granule Machine
Production overview of rotary drum granulator
The newly developed organic fertilizer rotary drum granulator is a molding machine which can make the material into a specific shape. Drum granulator is one of the key equipment in the compound fertilizer industry. It is suitable for mass production of cold, hot granule and high and low concentration compound fertilizer.
![]()
Features of rotary drum granulator
(1) Drum granulator is one of the key equipment in compound fertilizer industry.
(2) It is suitable for hot and cold granulation and high, medium and low concentrations of mass production of compound fertilizer.
(3) The shell of the machine uses special rubber slab lining or acid-resistant stainless lining board which realizes auto scar removal and de-tumor instead of traditional drawknife equipment
(4) High balling strength, good appearance, corrosion resistance, wear resistance, low energy consumption, long service life, easy operation and maintenance, etc.
![]()
Working Principle of rotary drum granulator
Using high speed rotating mechanical shearing force and the resulting air power, making continuous implementation of the fine powder material in the machine mixing, granulating, spheroidizing, density and other processes, which achieves the goal of the granulation. The shape of particles is spherical; the spherical degree is 0.7 or higher; the particle size is generally between 1 and 10 mm; granulating rate is 90% or higher; the size of particle diameter can be adjusted according to the mixture quantity and spindle speed; generally, the lower the mixing volume, the higher the rotational speed, the smaller the particle, and vice versa.
![]()
Parameter of rotary drum granulator
|
Model |
Cylinder Speed(r/min) |
Power(kw) |
Capacity(t/h) |
Length*width*height(mm) |
|
SH1.2×4 |
17 |
5.5 |
1-3 |
4600*2200*2000 |
|
SH1.5×6 |
11.5 |
7.5 |
3-7 |
7000*1800*1800 |
|
SH1.8×7 |
11.5 |
15 |
8-15 |
8300*500*3300 |
|
SH2.0×8 |
11 |
18.5 |
15-25 |
9100*3600*3500 |
|
SH2.2x10 |
10.5 |
30 |
18-30 |
9500*4400*3900 |
|
SH2.4x10 |
10 |
37 |
20-30 |
10000*2912*3923 |
|
SH2.8x10 |
13 |
75 |
25-50 |
10000*3100*4000 |

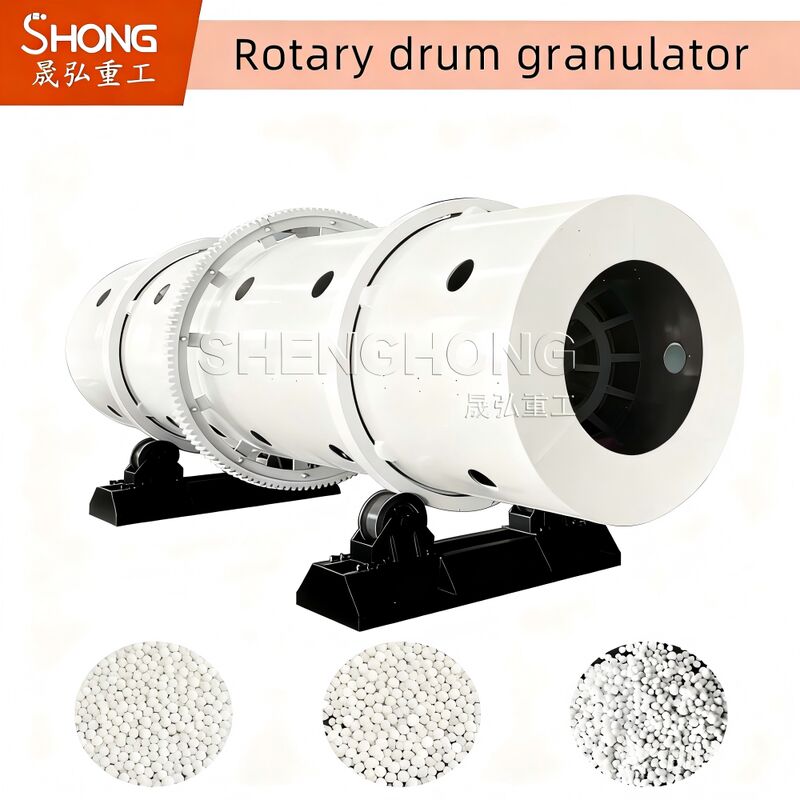

Picture of rotary drum granulator
![]()
